Paddy Pre-Cleaner in Haryana | PFC Food Pro-Tech

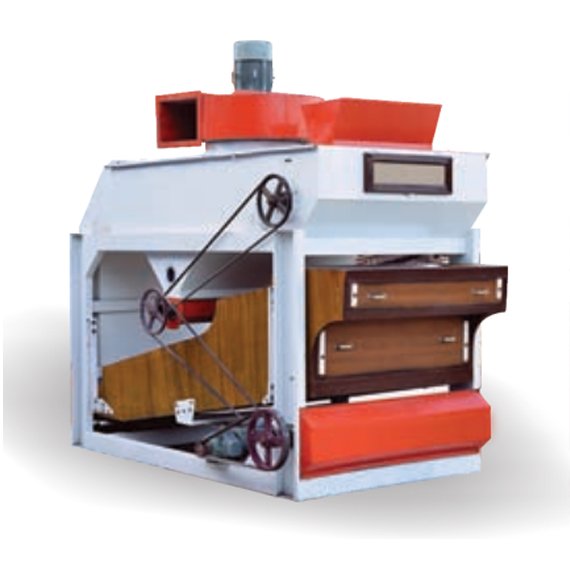

Paddy Pre-Cleaner

Capacity

5 to 15 tonnes per hour

Size: 8'x4'

Pre-cleaner features a three sieve system.
Sieve system with an individual sieve slope for optimum separation on each screen.
An inlet feed roller to feed over the entire working width of the machine.
It is fixed and of variable drive to suit specific requirement and driven by 7.5 HP motor.

Product Description

Being a prestigious manufacturer, exporter and supplier in this domain, we are affianced in offering the best quality Paddy Pre Cleaner. Provided cleaner is widely used in rice mills to eliminate stone, dust and other particles from paddy. With the utilization of quality-examined components and advanced techniques, this cleaner is manufactured by our brilliant professionals. Moreover, our prestigious patrons can purchase this Paddy Pre Cleaner from us at rock bottom rates within prescribed delivery time.

Product Details

Type	Paddy Pre-Cleaner
Material	PFC FOOD PRO-TECH.
Automatic	Grade Semi-Automatic
Computerized	No
Size	Different Sizes Available
Warranty	1 Year
Color	White And Orange

Components of a Paddy Pre-Cleaner

A paddy pre-cleaner is an essential machine in rice milling operations, designed to remove impurities like straw, dust, stones, and other unwanted materials from raw paddy before it undergoes further processing. The components of a typical paddy pre-cleaner include:

Feeding Hopper: This is where the raw paddy is initially loaded into the machine for processing.
Vibratory Feeder: This component ensures a consistent flow of paddy into the pre-cleaning chamber, preventing uneven feeding.
Pre-Cleaning Chamber: This is the main area where the cleaning process occurs. It usually consists of the following components: Scalper: Removes large impurities like straw, leaves, and larger stones. Aspirator: Uses airflow to separate lighter impurities like dust, husk, and small stones from the paddy. Screening Mechanism: Often includes screens with different mesh sizes to separate paddy from smaller impurities.
Fan or Blower: Creates airflow within the pre-cleaner to assist in the separation of lighter materials like husk and dust.
Adjustable Mechanism: Allows operators to adjust parameters such as the angle of the screens or the speed of vibratory feeders to optimize cleaning efficiency.
Outlet Chutes: Separate outlets for cleaned paddy and separated impurities, ensuring the processed materials are directed accordingly.
Frame and Support Structure: Provides the framework and stability for the entire machine.

These components work together to ensure that the raw paddy is effectively cleaned and prepared for subsequent processing stages in the rice milling process. Each component plays a crucial role in achieving high-quality cleaned paddy suitable for further milling and polishing.
